Circular Vibrating Screen
Circular Vibrating Screen

Circular Vibrating Screen

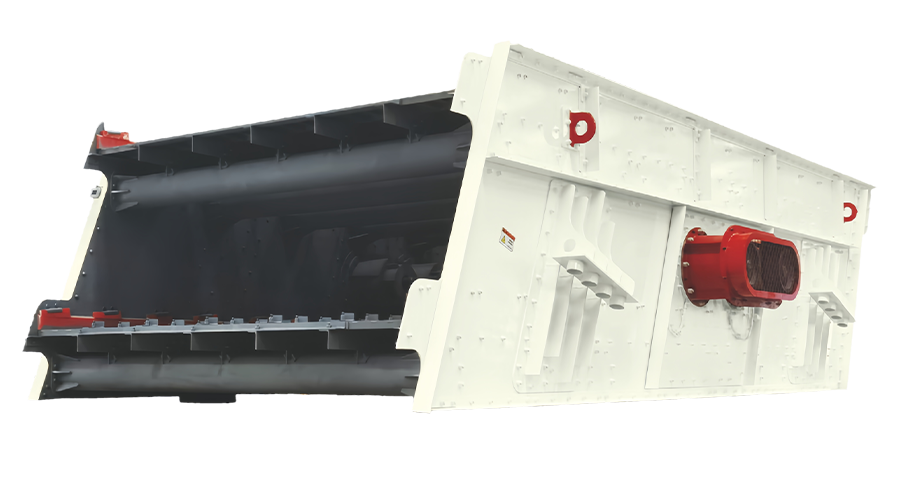

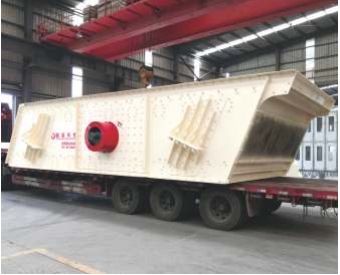

Zhenyuan SYKH Series circular vibrating screen is specially designed for the classification of materials in non-ferrous metal, ferrous metal, and non-metallic mining industries. Its performance indicators, such as vibration frequency, amplitude, and inclination angle, are optimized based on years of practical experience and screening theory, ensuring superior screening performance.

Working Principle

Unique Advantages

Features

Specifications

case

Related Products

Inquiry

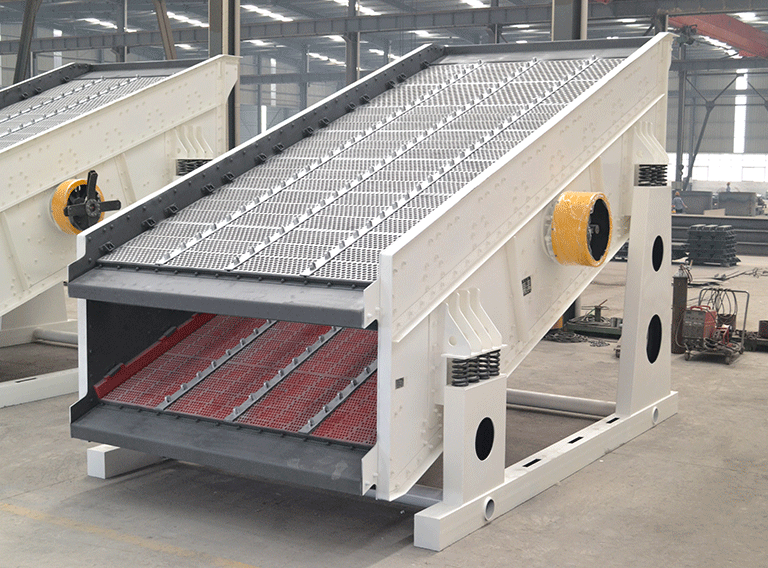

How Circular Vibrating Screen Work

Zhenyuan SYKH Series circular vibrating screen is specially designed for the classification of materials in non-ferrous metal, ferrous metal, and non-metallic mining industries. Its performance indicators, such as vibration frequency, amplitude, and inclination angle, are optimized based on years of practical experience and screening theory, ensuring superior screening performance.

The screen machine employs a patented thin oil lubrication block eccentric vibrator, which features excellent bearing lubrication performance and low operational temperature rise. This innovation not only reduces the daily maintenance workload of lubricating oil replenishment but also extends the bearing lifespan.

Advantages

  • The screen side plates are made of high-quality DH36 specialized alloy steel plates

  • Equipped with an oil-lubricated vibrator (patented technology), requiring oil replenishment only once a month, achieving maintenance-free operation and reducing labor intensity

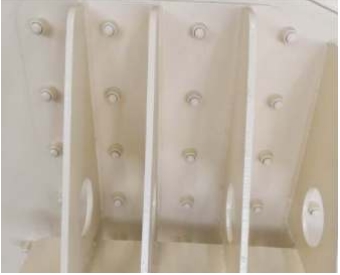

  • The beams are designed with an infinite life cycle, undergoing post-welding heat treatment and precision machining at both ends

  • Hooke's ring groove rivets are used for riveting, ensuring that the connections of the screen components never loosen during vibration

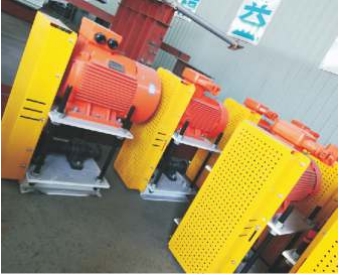

  • The dual-shaft drive synchronization employs highly reliable imported timing belts, offering long service life and convenient spare part replacement

feature

  • Excellent Seismic Resistance

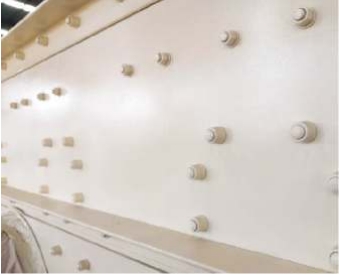

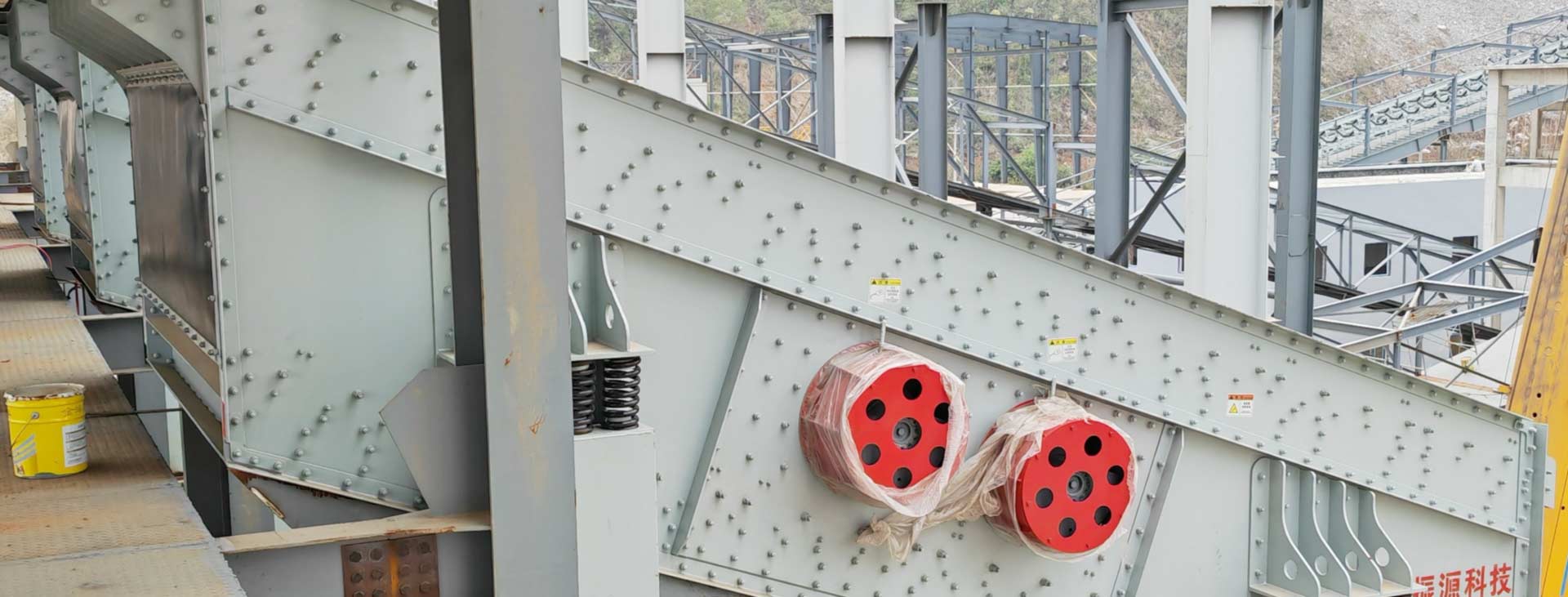

    The side plates and cross beams of the screening machine are entirely connected by rivets, ensuring high strength and reliability — resulting in excellent seismic resistance.

  • Long Service Life
  • Stable Running&Quick Frequency Adjustment

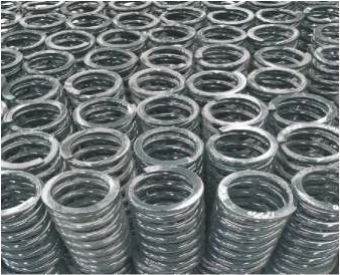

  • Damping Spring with High Load Capacity&Excellent Damping Performance

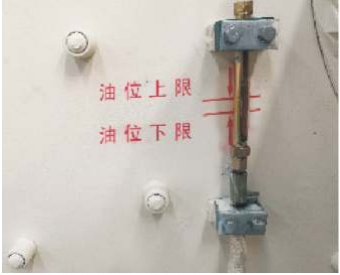

  • Visual Level Indicator
  • Excellent Tear-resistant Performance
Excellent Seismic Resistance
Long Service Life
Stable Running&Quick Frequency Adjustment
Damping Spring with High Load Capacity&Excellent Damping Performance
Visual Level Indicator
Excellent Tear-resistant Performance

Talk with our technical engineer

Submit your details and Talk with one of our technical engineer about your project.

Send Email

Technical Parameters

Model

Screen Plate

Max.Input Size

Capacity

Electrical Motor

Layer(s)

Area(m2)

Mesh Size(mm)

(mm)

(t/h)

Power(kw)

Qty(pcs)

2SYKH2160

2

12.6×2

3-80

200

60-400

30

1

3SYKH2160

3

12.6×3

3-80

200

60-400

37

1

2SYKH2460

2

14.4×2

3-80

200

90-500

37

1

3SYKH2460

3

14.4×3

3-80

200

90-500

37

1

2SYKH3075

2

22.5×2

3-80

200

150-700

37

1

3SYKH3075

3

22.5×3

3-80

200

150-700

30

2

2SYKH3685

2

30.6×2

3-80

200

180-1100

45

2

3SYKH3685

3

30.6×3

3-80

200

180-1100

55

2

2SYKH40100

2

40×2

3-80

200

210-1500

75

2

3SYKH40100

3

40×3

3-80

200

210-1500

75

2

Note: The aforementioned data is for reference only and should not be construed as a natural commitment from the equipment supplier; due to significant variations in rock or ore, the actual production results may differ considerably from the data presented in the table. For specific applications, please contact the Technology Center of Zhenyuan Technology.

success case

Customized R&D one-stop service Send Email

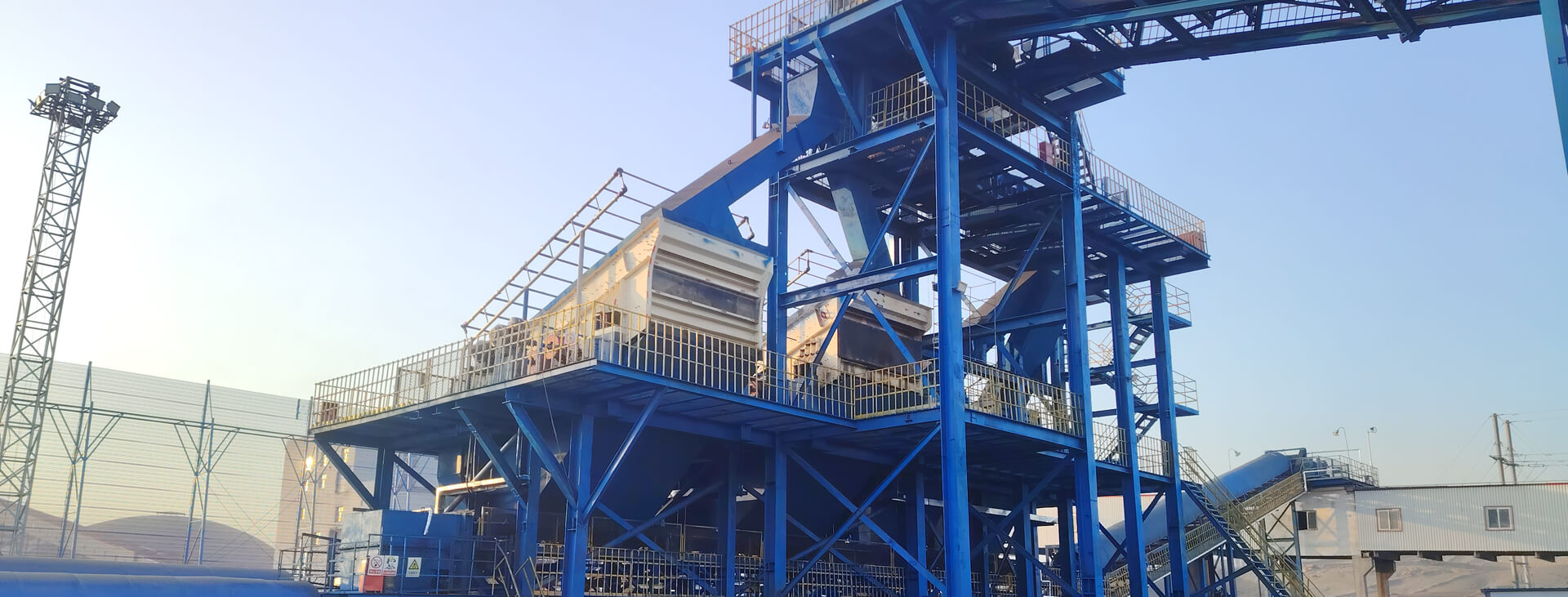

800TPH Circular Vibrating Screen for Coal Screening Plant in Russia

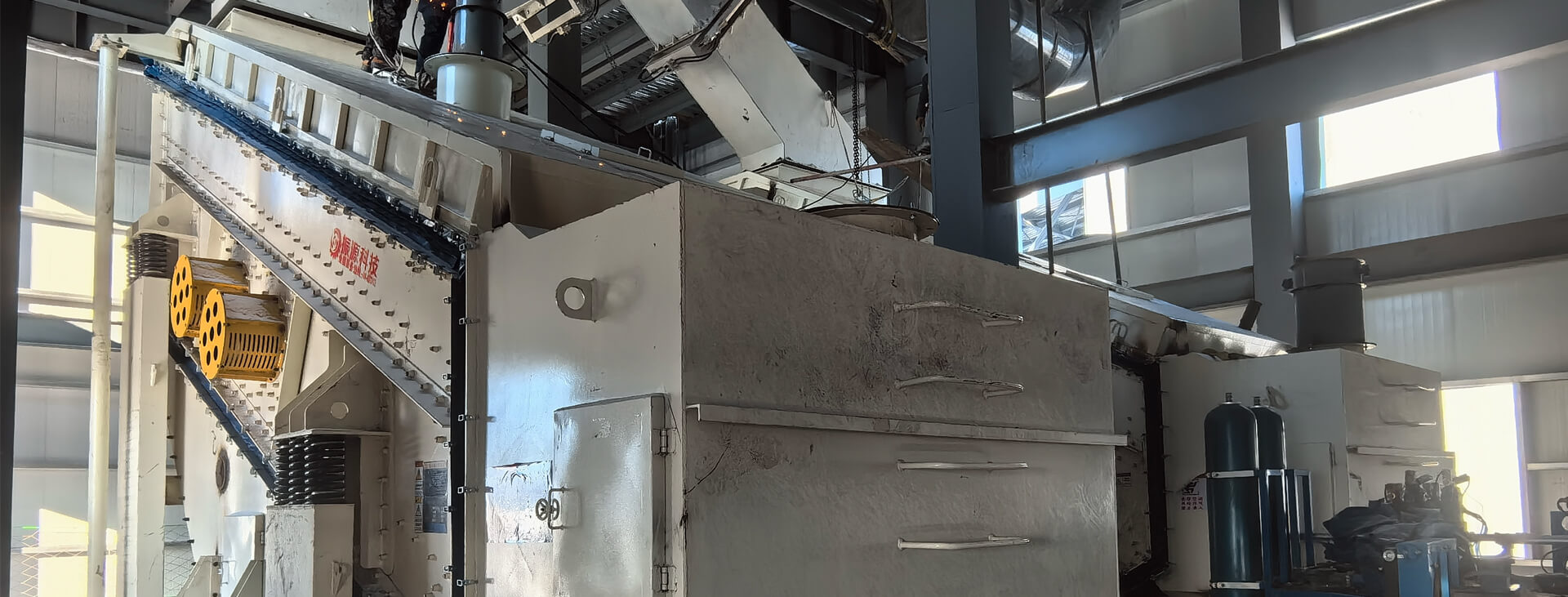

1400TPH Circular Vibrating Screen for Coal Loading Plant in Xinjiang

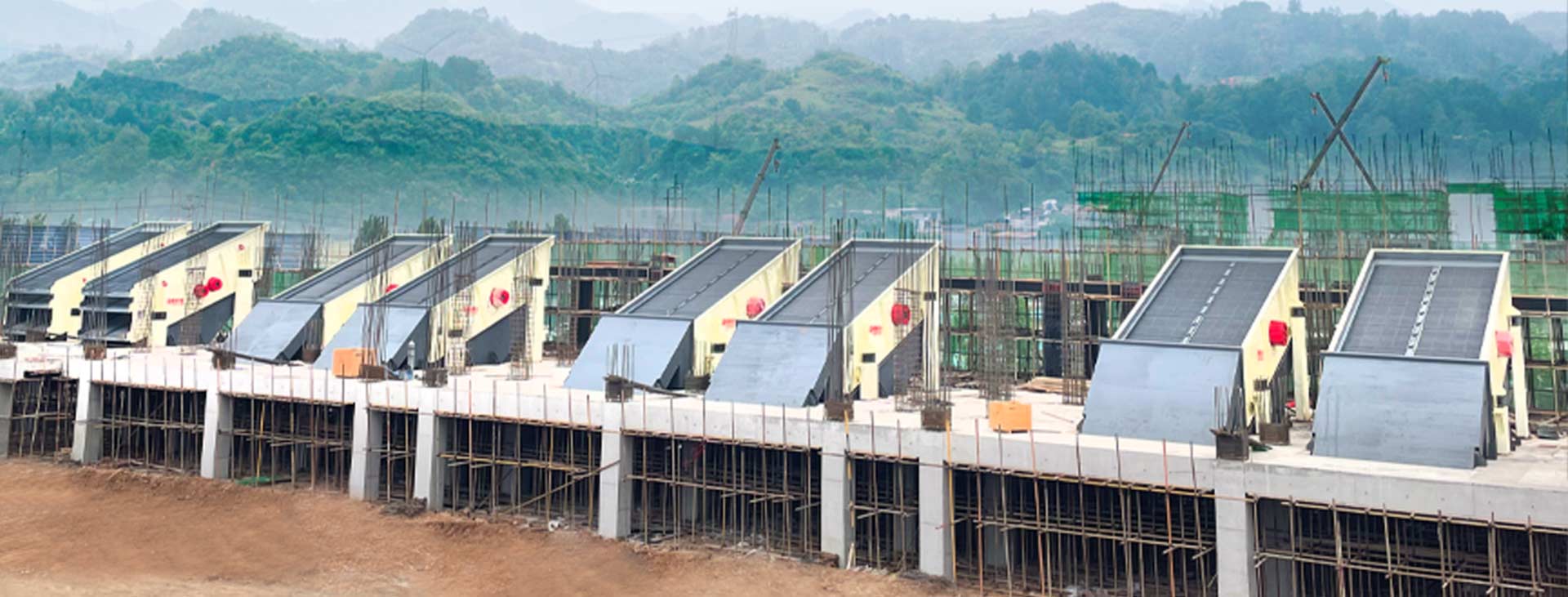

700TPH Circular Vibrating Screen for Sand&Gravel Screening Plant in Brazil
1000TPH Circular Vibrating Screen for Aggregate Screening Plant in Henan
