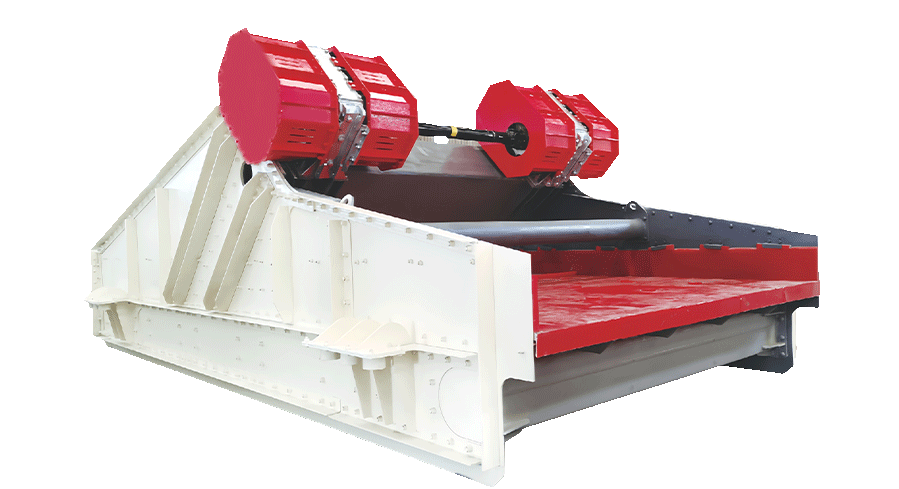

Zhenyuan DZX Series large linear vibrating screen is a new type of screening machinery, primarily used in coal preparation plants for dewatering and desliming, coal slurry recovery, tailings dewatering in mineral processing plants, and water-washed sand dewatering in manufactured sand plants. It can also be employed for the classification of various medium and fine-grained materials. This machine incorporates advanced foreign technology and is designed and manufactured in consideration of domestic operational conditions, making it more suitable for on-site usage requirements.
Phone:
+86 16627793888whatsapp:
+86 15837376139wechat:
+86 16627793888email:
info@zysizers.comZhenyuan DZX Series large linear vibrating screen is a new type of screening machinery, primarily used in coal preparation plants for dewatering and desliming, coal slurry recovery, tailings dewatering in mineral processing plants, and water-washed sand dewatering in manufactured sand plants.
It can also be employed for the classification of various medium and fine-grained materials. This machine incorporates advanced foreign technology and is designed and manufactured in consideration of domestic operational conditions, making it more suitable for on-site usage requirements.
Side plates and rivet holes are formed in one cut using a high-precision laser cutting machine, ensuring high manufacturing accuracy
Riveted connections are used instead of welding, eliminating welding stress. This results in a machine with high overall strength and a long service life
The crossbeam adopts a rectangular hollow structure. After welding, the entire structure undergoes stress-relief treatment. This design ensures a high safety factor and superior strength
The screen plates feature a modular design, offering strong versatility and short delivery cycles
The lower crossbeam's surface, which comes into contact with materials, is coated with polyurea or bonded with TIPTOP high-wear-resistant rubber. This provides the crossbeam with excellent impact resistance, corrosion resistance, and wear resistance
Submit your details and Talk with one of our technical engineer about your project.
Send Email|
Model |
Screen Plate |
Max. Input Size |
Capacity |
Electrical Motor |
|||
|
Layer(s) |
Area(m2) |
Mesh Size(mm) |
(mm) |
(t/h) |
Power(kw) |
Qty(pcs) |
|
|
DZX1848 |
1 |
8.64 |
0.5-15 |
100 |
40-100 |
22 |
1 |
|
2DZX1848 |
2 |
8.64×2 |
Upper:3-50 Lower:0.5-15 |
100 |
70-300 |
30 |
1 |
|
DZX2448 |
1 |
11.52 |
0.5-15 |
100 |
40-120 |
30 |
1 |
|
2DZX2448 |
2 |
11.52×2 |
Upper:3-50 Lower:0.5-15 |
100 |
100-450 |
45 |
1 |
|
DZX2461 |
1 |
14.64 |
0.5-15 |
100 |
40-130 |
37 |
1 |
|
2DZX2461 |
2 |
14.64×2 |
Upper:3-50 Lower:0.5-15 |
100 |
100-550 |
45 |
1 |
|
DZX3061 |
1 |
18.3 |
0.5-15 |
100 |
40-300 |
45 |
1 |
|
2DZX3061 |
2 |
18.3×2 |
Upper:3-50 Lower:0.5-15 |
100 |
100-700 |
55 |
1 |
|
DZX3661 |
1 |
21.96 |
0.5-15 |
100 |
40-370 |
55 |
1 |
|
2DZX3661 |
2 |
21.96×2 |
Upper:3-50 Lower:0.5-15 |
100 |
100-830 |
75 |
1 |
|
DZX4361 |
1 |
26.23 |
0.5-15 |
100 |
40-450 |
55 |
1 |
|
2DZX4361 |
2 |
26.23×2 |
Upper:3-50 Lower:0.5-15 |
100 |
100-950 |
75 |
1 |
Note: The aforementioned data is for reference only and should not be construed as a natural commitment from the equipment supplier; due to significant variations in rock or ore, the actual production results may differ considerably from the data presented in the table. For specific applications, please contact the Technology Center of Zhenyuan Technology.

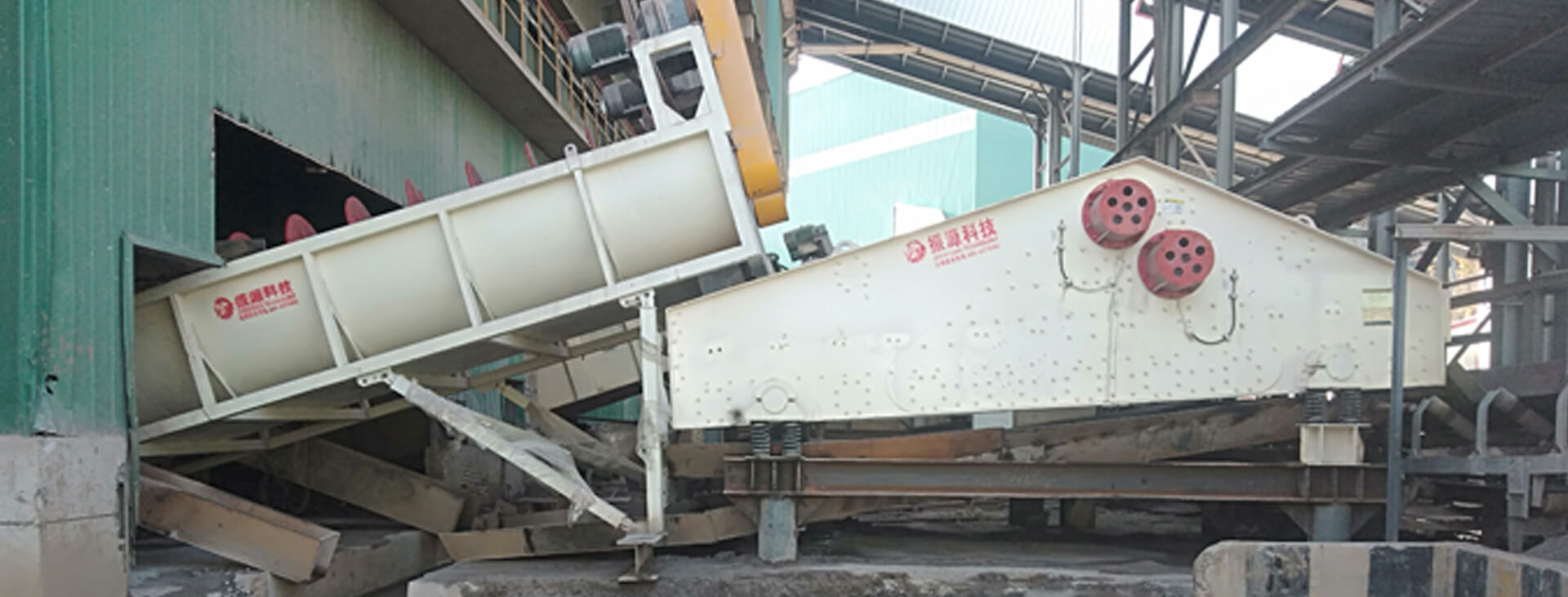

Processing Materials: Coal
Input Size: 0-100mm
Screen Mesh Size: 1.5mm
Capacity: 300-350TPH

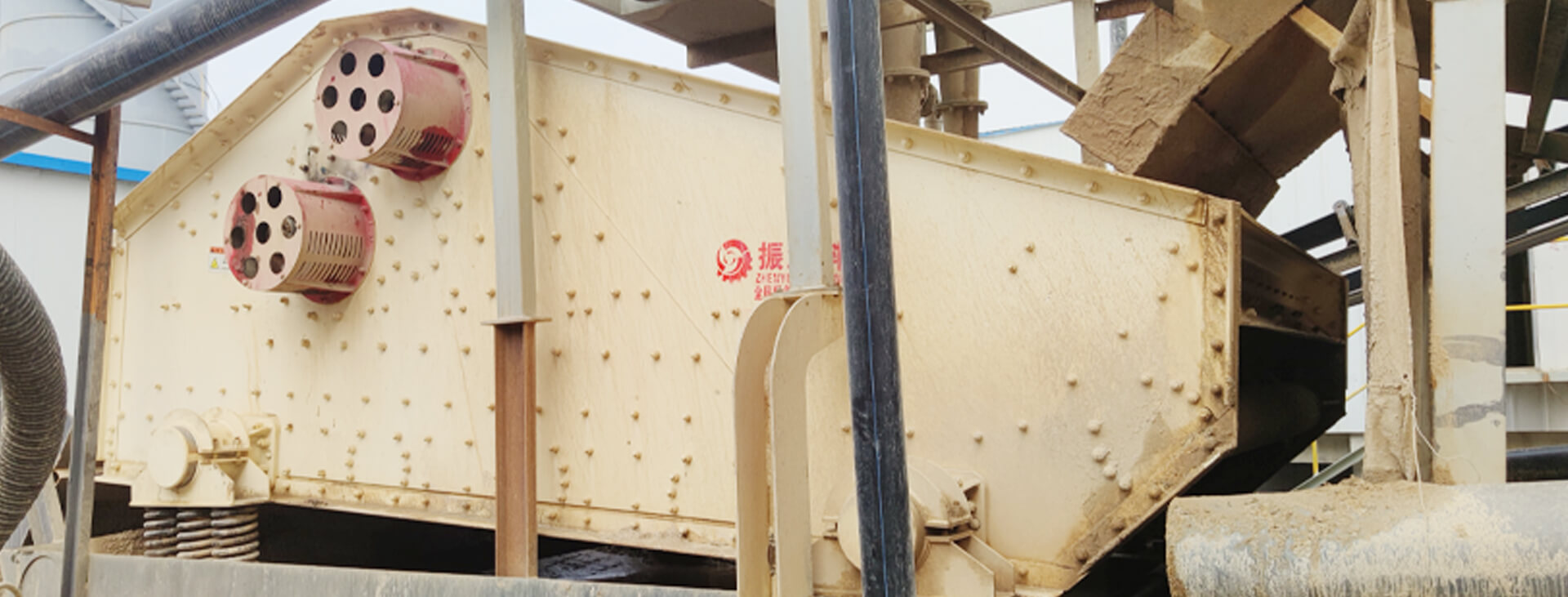

Processing Materials: Coal
Input Size: 0-100mm
Screen Mesh Size: 0.5mm
Capacity: 150TPH

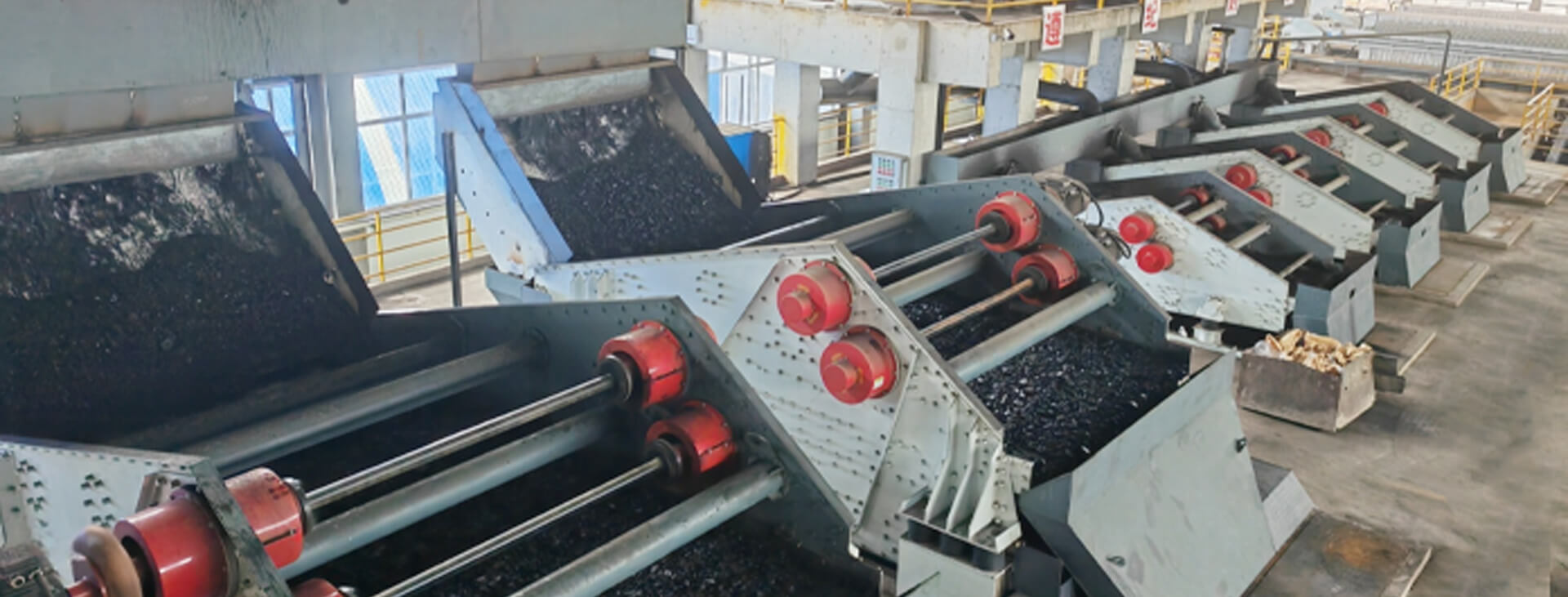

Processing Materials: Sand
Input Size: 0-5mm
Screen Mesh Size: 0.3mm
Capacity: 200TPH

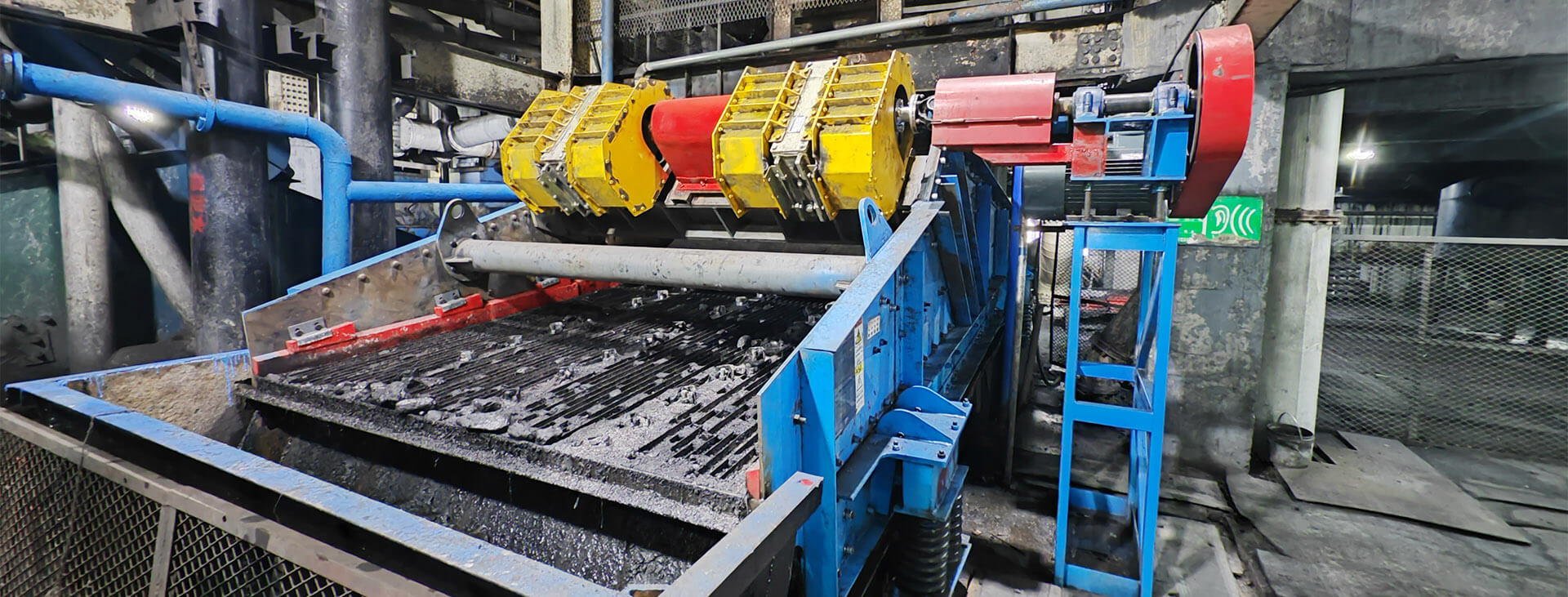

Processing Materials: Sand
Input Size: 0-5mm
Screen Mesh Size: 0.35mm
Capacity:250TPH/Set
