In order to achieve large-scale production and processing of various minerals, a crushing and screening plant composed of different modules such as feeding, crushing, conveying, screening, storage and electrical has emerged, which has realized the functions of crushing, screening, conveying and storage of various open-pit minerals.
Phone:
+86 16627793888whatsapp:
+86 15837376139wechat:
+86 16627793888email:
info@zysizers.comIn order to achieve large-scale production and processing of various minerals, a crushing and screening plant composed of different modules such as feeding, crushing, conveying, screening, storage and electrical has emerged, which has realized the functions of crushing, screening, conveying and storage of various open-pit minerals.
Feeding module, crushing module, screening module, conveying module are reasonably configured according to customer requirements and working conditions to meet the production requirements of open-pit mines of different production scales.
Submit your details and Talk with one of our technical engineer about your project.
Send Email|
Model |
Max. Input Size(mm) |
Output Size(mm) |
Capacity(t/h) |
Power(KW) |
|
PSZ-1500 |
1200 |
300 |
1000-1500 |
395-490 |
|
PSZ-2500 |
1200 |
300 |
2000-2500 |
532-660 |
|
PSZ-3500 |
1500 |
300 |
3000-3500 |
685-850 |
|
PSZ-5000 |
1800 |
400 |
4500-5000 |
894-1030 |
|
PSZ-7000 |
2000 |
400 |
6000-7000 |
1080-1200 |

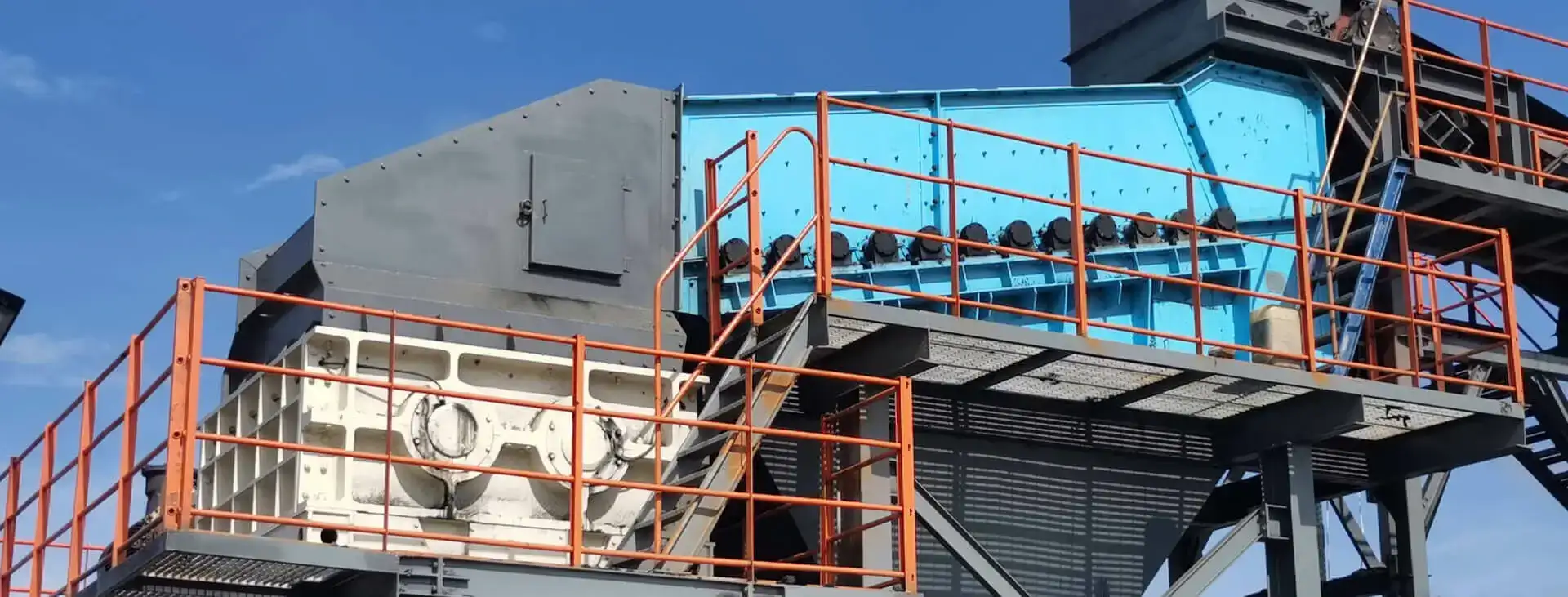

Processing Materials: Raw Coal
Input Size: 0-1000mm
Output Size: 0-75mm
Capacity: 2000-2400TPH
Processing Materials: Raw Coal
Input Size: 0-1500mm
Output Size: 0-300mm
Capacity: 3500-4000TPH
Processing Materials: Raw Coal
Input Size: 0-1500mm
Output Size: 0-20mm, 20-40mm, 40-80mm
Capacity:3500-4000TPH
Processing Materials: Oil Shale
Input Size: 0-1200mm
Output Size: 0-80mm
Capacity: 1200-1600TPH
Processing Materials: Raw Coal
Input Size: 0-1000mm
Output Size: 0-50mm
Capacity: 1500-1800TPH
